Compact class

F 55

Highlights

  • Precise laser distance sensors with operating ranges of up to 1 m for diverse applications
  • Time-of-flight sensors for distance measurement and reliable object detection in front of any background, with a range of up to 5 m
  • High-end color sensor FT 55-CM: high performance and ease of use
  • All laser versions are laser class 1 – for optimum safety
  • Precise background suppression and minimal black/whiteshift
  • User-friendly operation of all “energetic” variants via electronic teach-in key or control line

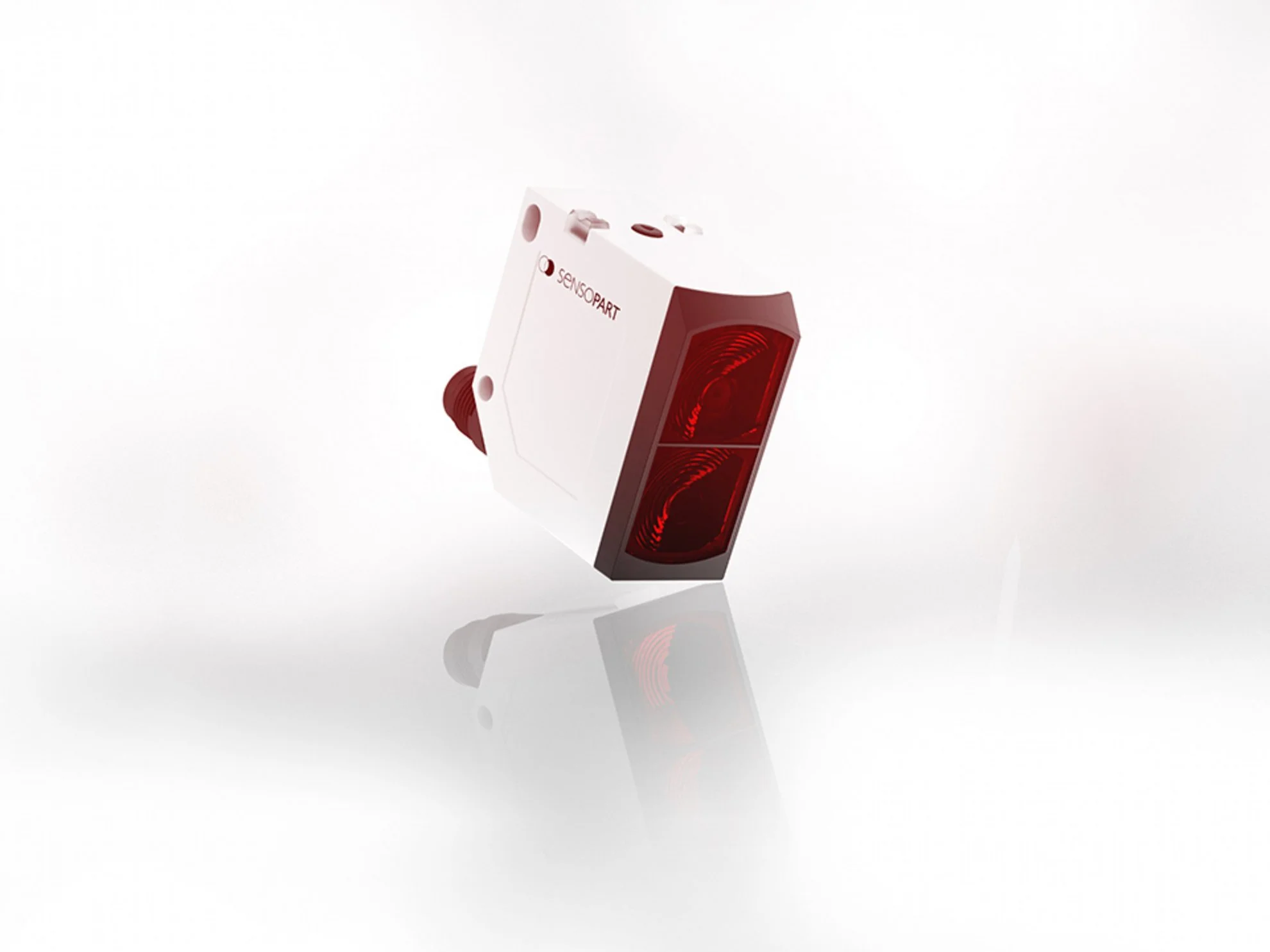

F 55 - Compact class

SensoPart sets the standards in the compact class with its F 55 series of photoelectric sensors. The products in this family combine excellent performance data with a robust housing design and many user-friendly details. They guarantee reliable detection by means of a focused laser light or red-light LED as well as precise background suppression.

The sensors of the F 55 series have a very high light intensity:
the photoelectric diffuse sensor with background suppression, for example, reaches a scanning distance of up to 1200 mm. The bright, sharply contoured light spot is still easily visible even at long distances and in intense daylight, considerably simplifying commissioning.

The F 55 series covers all standard applications in industrial automation: whether for part detection in the automotive industry or for sorting tasks in machine construction – the sensors excel everywhere with their excellent performance.

Filter products

Sensor principle
Connection name
Working range [mm]
Series
IO-Link
Light color
Light source
Switching output Q
Selection:

Sorry, no products matching your search criteria were found.

236 Products match your search criteria

Illustration
Description
Sensor principle
Working range
Connection name
Laser photoelectric through-beam sensor, receiver, red light, laser class 1, SN=3000 mm, NPN, 4000 Hz, IP67, M5 4-pin plug, teach-in
Sensor principle
One-way light barrier (transmitter/receiver)
Working range
0 ... 4000
Connection name
Plug, M5x0.5, 4-pin
Laser photoelectric through-beam sensor, receiver, red light, laser class 1, SN=3000 mm, NPN, 4000 Hz, IP67, 2-meter 4-wire cable, teach-in
Sensor principle
One-way light barrier (transmitter/receiver)
Working range
0 ... 4000
Connection name
Cable, 2 m, 4-wire
Laser photoelectric through-beam sensor, receiver, red light, laser class 1, SN=3000 mm, NPN, 4000 Hz, IP67, molded plug (pigtail) M8 3-pin, 200 mm cable, teach-in
Sensor principle
One-way light barrier (transmitter/receiver)
Working range
0 ... 4000
Connection name
Pigtail 200 mm with M8 plug, 3-pin
Laser photoelectric through-beam sensor, receiver, red light, laser class 1, SN=3000 mm, NPN, 4000 Hz, IP67, molded plug (pigtail) M8 4-pin, 200 mm cable, teach-in
Sensor principle
One-way light barrier (transmitter/receiver)
Working range
0 ... 4000
Connection name
Pigtail 200 mm with M8 plug, 4-pin
Laser photoelectric through-beam sensor, receiver, red light, laser class 1, SN=3000 mm, PNP, 4000 Hz, IP67, M5 4-pin plug, teach-in
Sensor principle
One-way light barrier (transmitter/receiver)
Working range
0 ... 4000
Connection name
Plug, M5x0.5, 4-pin
Laser photoelectric through-beam sensor, receiver, red light, laser class 1, SN=3000 mm, PNP, 4000 Hz, IP67, 2-meter 4-wire cable, teach-in
Sensor principle
One-way light barrier (transmitter/receiver)
Working range
0 ... 4000
Connection name
Cable, 2 m, 4-wire
Laser photoelectric through-beam sensor, receiver, red light, laser class 1, SN=3000 mm, PNP, 4000 Hz, IP67, molded plug (pigtail) M8 3-pin, 200 mm cable, teach-in
Sensor principle
One-way light barrier (transmitter/receiver)
Working range
0 ... 4000
Connection name
Pigtail 200 mm with M8 plug, 3-pin
Laser photoelectric through-beam sensor, receiver, red light, laser class 1, SN=4000 mm, PNP, 4000 Hz, IP67, molded plug (pigtail) M8 4-pin, 200 mm cable, teach-in
Sensor principle
One-way light barrier (transmitter/receiver)
Working range
0 ... 4000
Connection name
Pigtail 200 mm with M8 plug, 4-pin
Photoelectric through-beam sensor (receiver), 13 m, red light, LED, auto-detect, teach-in, 2 m, 4-wire cable, IP 67 & IP 69, IO-Link
Sensor principle
One-way light barrier (transmitter/receiver)
Working range
0 ... 13000
Connection name
Cable, 2 m, 4-wire, IO-Link
Photoelectric through-beam sensor (receiver), 13 m, red light, LED, auto-detect, teach-in, M8 metal plug, 4-pin, IP 67 & IP 69, IO-Link
Sensor principle
One-way light barrier (transmitter/receiver)
Working range
0 ... 13000
Connection name
Metal plug M8x1, 4-pin, IO-Link
